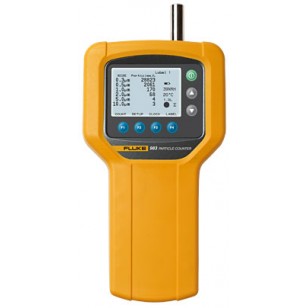

Fluke 983 Particle Counter
Take a new look at
indoor air quality
The new Fluke 983 Particle Counter is the preferred choice for HVAC and IAQ
professionals. From filter testing to IAQ investigations, the Fluke 983 is the
portable solution for determining airborne particle concentrations. Use the
Fluke 983 to immediately respond to occupant complaints, or as part of a
comprehensive preventive maintenance program.
With the Fluke 983, you can:
- Measure filter efficiency
- Monitor industrial cleanrooms
- Pre-screen indoor air quality and confidently work with IAQ
specialists
- Locate particle sources for remediation
- Report the effectiveness of repairs to customers
- Drive additional business by demonstrating the need for maintenance
and repair
|
With expanded data logging and six-channel particle size display, the Fluke
983 allows users to run more tests quickly, with less time spent cycling through
screens to obtain the data. The Fluke 983 is lightweight and easy to use in any
position, with a comfortable hand strap and rugged rubber holster.
Assess air quality more easily and accurately
The Fluke 983 Particle Counter simultaneously measures and displays six
channels of particle size distribution, temperature and humidity. This compact,
lightweight, self-contained tool allows for one-handed operation. The Fluke 983
maintains its accuracy when used in any position. The 8 hour rechargeable
battery together with a large 5000 sample record capacity allows for
uninterupted performance during air quality surveys. The Fluke 983 is the ideal
tool for determining size distribution of airborne particles or tracking down a
particle source.
- Simultaneously measure and display 6 channel of particle sizes,
temperature and humidity
- Measure particle size down to 0.3 µm
- Selectable sample time, count data, programmable delay
- Store 5000 records of date, time, counts, relative humidity,
temperature, sample volumes, alarms and location label
- Upload stored data to a PC with included software
- Compact, self-contained package allows for one-handed operation
- Intuitive, easy to use user interface
- Always ready to run, with no fluids to refill
- Backlit LCD for use in any lighting condition
- 8 hour rechargeable NiMH battery
- Protective holster
|
| Specifications |
| Channels |
|
0.3, 0.5, 1.0, 2.0, 5.0, 10.0
µm | |
| Flow Rate |
|
0.1 cfm (2.83 L/min) controlled by internal
pump | |
| Count Modes |
|
Concentration, totalize,
audio | |
| Counting Efficiency |
|
50% @0.3 µm; 100% for particles > 0.45 µm
(per JIS B9921:1997) | |
| Zero Count |
|
1 count/5 minute (JIS
B9921:1997) | |
| Coincidence Loss |
|
5% at 2,000,000 particles per
ft3 | |
| Relative Humidity |
|
± 7%, 20% to 90%
non-condensing | |
| Temperature |
|
± 3 °C, 10 °C to 40 °C (50 °F to 104
°F) | |
| Data Storage |
|
5000 sample records (rotating buffer) of
date, time, counts, relative humidity, temperature, sample volumes,
alarms, label | |
| Alarms |
|
Counts, low battery, sensor
fail | |
| Delay Time |
|
| Sample Inlet |
|
| Interface |
|
RS-232 and RS-485 via
RJ-45 | |
| Environmental
Specifications |
| Operating: |
|
10 °C to 40 °C (50 °F to 104 °F), 20% to 90%
relative humidity, non-condensing | |
| Storage: |
|
-10 °C to 50 °C (14 °F to 122 °F), up to 90%
relative humidity,
non-condensing | |
| Mechanical &
General Specifications |
| Size |
|
11.43 cm x 20.96 cm x 5.72 cm (4.5 in x 8.25
in x 2.25 in) |
|
Dimensions (W x L x
D) | |
| Weight |
|
| Power |
|
AC adapter, 12 V DC at 2.5A, 90 to 250 V AC,
50 to 60 Hz | |
| Rechargeable Battery |
|
NiMH, 4.8 V at 4.5 Ah;
replaceable | |
| Battery Life |
|
| Recharge Time |
|
| Calibration |
|
PSL particles in air (NIST
traceable) | |
